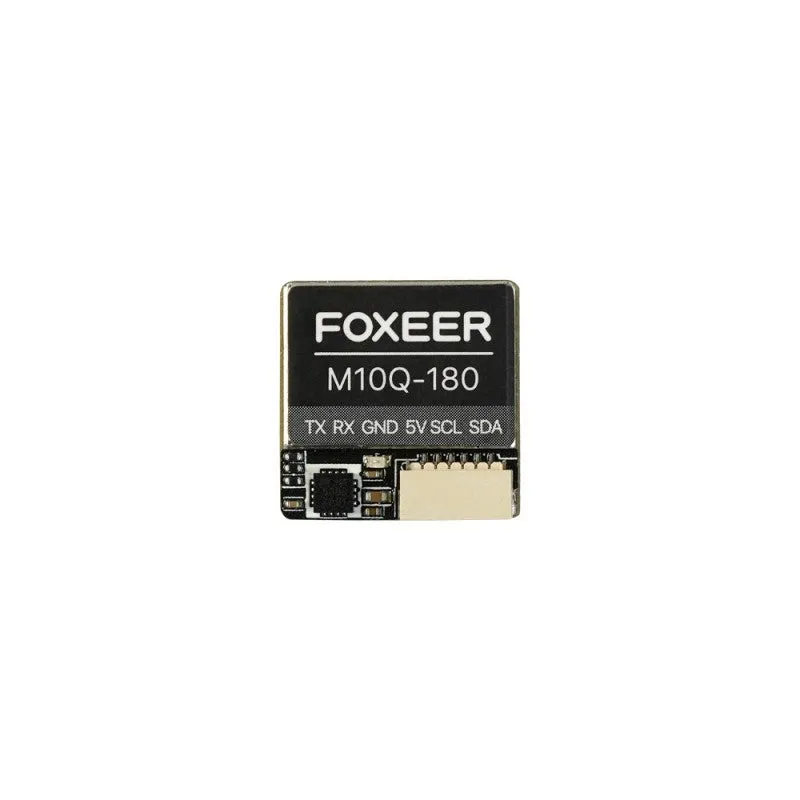

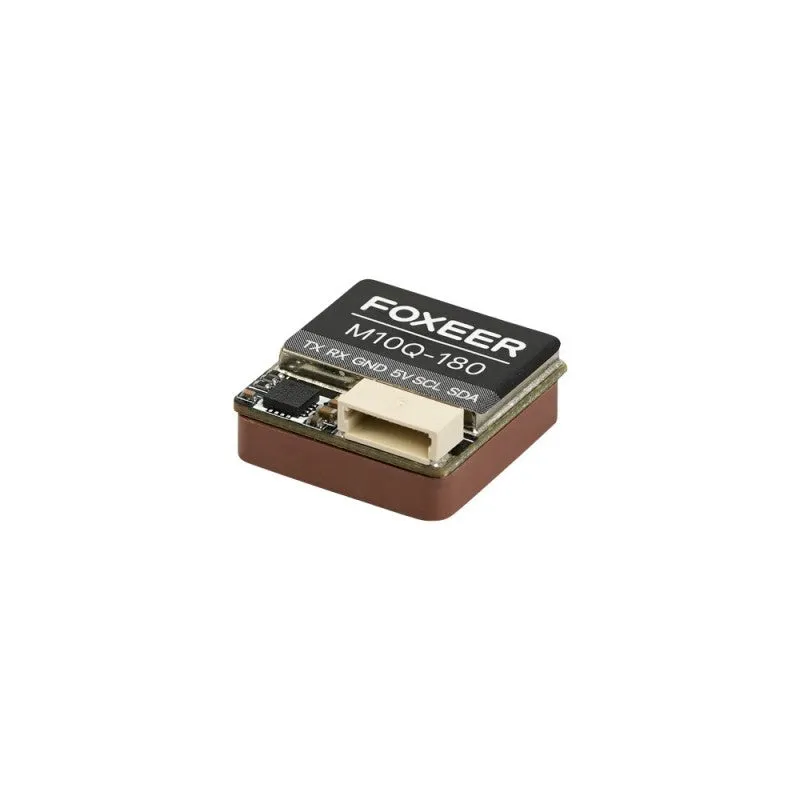

M10Q-180 is based on the UBLOX M10 chip, featuring fast and precise positioning.

Specifications

• Chip: M10(10th Generation Chip)
• Frequency: GPS L1GLONASS L1BDS B1GALILEO ESBAS L1QZSS L1
• Input Voltage: 5V
• Antenna: Ceramic
• Channels: 72
• Battery: Built-in
• Compass: QMC5883
• Compass Orientation: Plug facing direction of flight and obviously antenna up, BF: CW 180° Flip
• Baud Rate: 115200bps
• Protocol: Dual NMEA/UBLOX
• Output Frequency: 1Hz-10Hz,10Hz default
• Speed Accuracy: 0.05m/s
• Horizontal Positioning Accuracy 2D ACC1.5m(outdoor)
• Receiver Sensitivity Trace -166dBm; Capture -160dBm
• Dynamic Characteristics Height 50000m; Speed 500m/s; Acceleration 4G
• Operating Temperature -40C- 85C
• Storage temperature -40C- 105C
• Weight 7.5g
• Size 18*18*8mm
